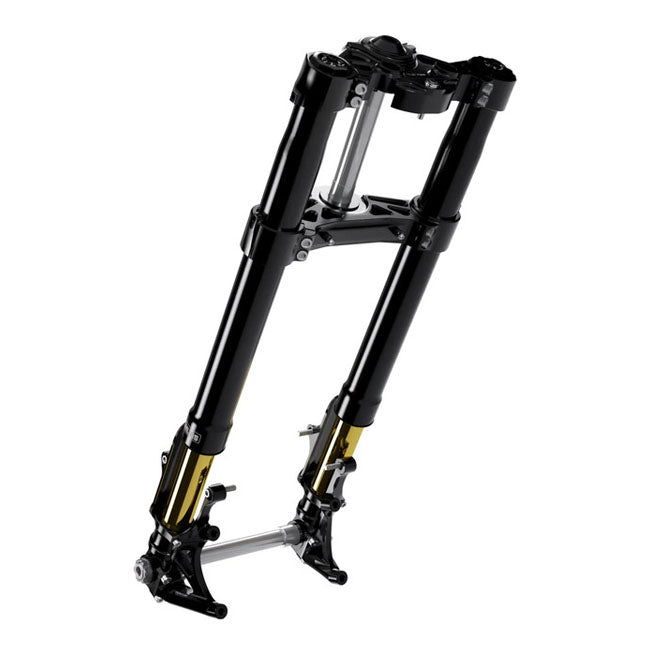

Kraus KR8 Inverted Front End Black - Touring

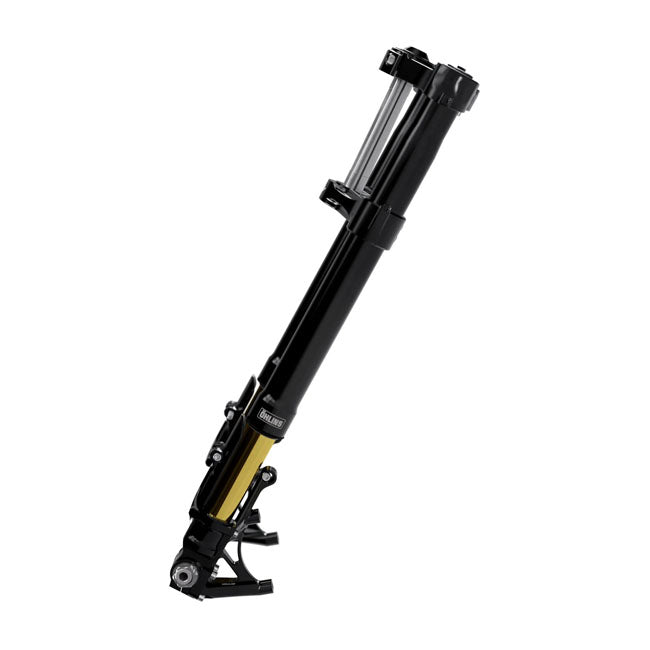

• Black anodized Öhlins inverted front forks for a sleek, performance look

• Forks offer full adjustment: spring preload, compression, and rebound damping

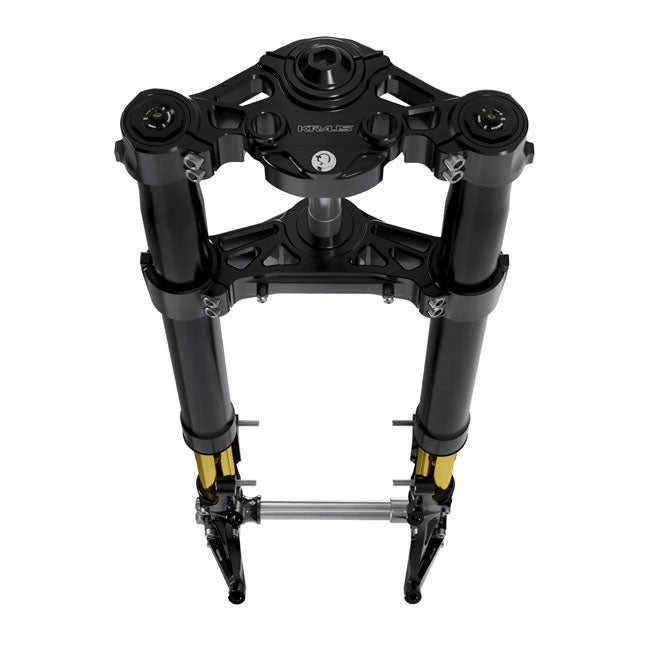

• Kraus KR8 billet triple trees (upper & lower) with 30 mm stem

• Includes 25 mm wheel axle, Kraus radial brake mounts, and fork guards to protect seals and sliders

• CNC-machined billet aluminum construction for maximum rigidity and precision

• Developed in partnership with Öhlins Racing Technology for race-proven performance

• Direct bolt-on installation using stock wheels*, brakes*, and bodywork

• Compatible with the Kraus Isolated Riser System for customizable ergonomics

Technical Specs

• Fork length: 800 mm (+2″ over stock)

• Stroke: 120 mm

• Top clamp diameter: 50 mm

• Lower clamp diameter: 54 mm

• Axle diameter: 25 mm

• Stem diameter: 30 mm

Notes

• Fits Harley-Davidson Touring (FLT) 2014–2024

• For 108 mm radial caliper fitment only

• If your bike has a 1″ (25.4 mm) axle, wheel bearings must be converted to 25 mm

• Compatible Kraus radial calipers:

  • RT3 108 mm (left: 706032 / right: 706033)

  • RTX8 108 mm (left: 706034 / right: 706035)

• For most 2024+ Touring models, see required 701518 front fender adapter kit
