This M8 Softail Triple Tree Kit features a dual-position riser mounting design, allowing risers to be mounted in the stock location or 1.0" closer to the rider for improved ergonomics. The drop-tree design supports riding at stock height or lifting the front end by up to 1" for increased ground clearance.
Specifications
Fits 2020–Current M8 Softail Low Rider S & Low Rider ST models with OEM inverted forks (Not compatible with Fat Bob models)
Two riser mounting positions:
Stock location
1.0" closer to rider
Drop capability:
2022–Current: up to 1 ⅛"
2020–2021: up to ¾"
Dual pinch-bolt design on both upper and lower triple trees
Riser bushings not required

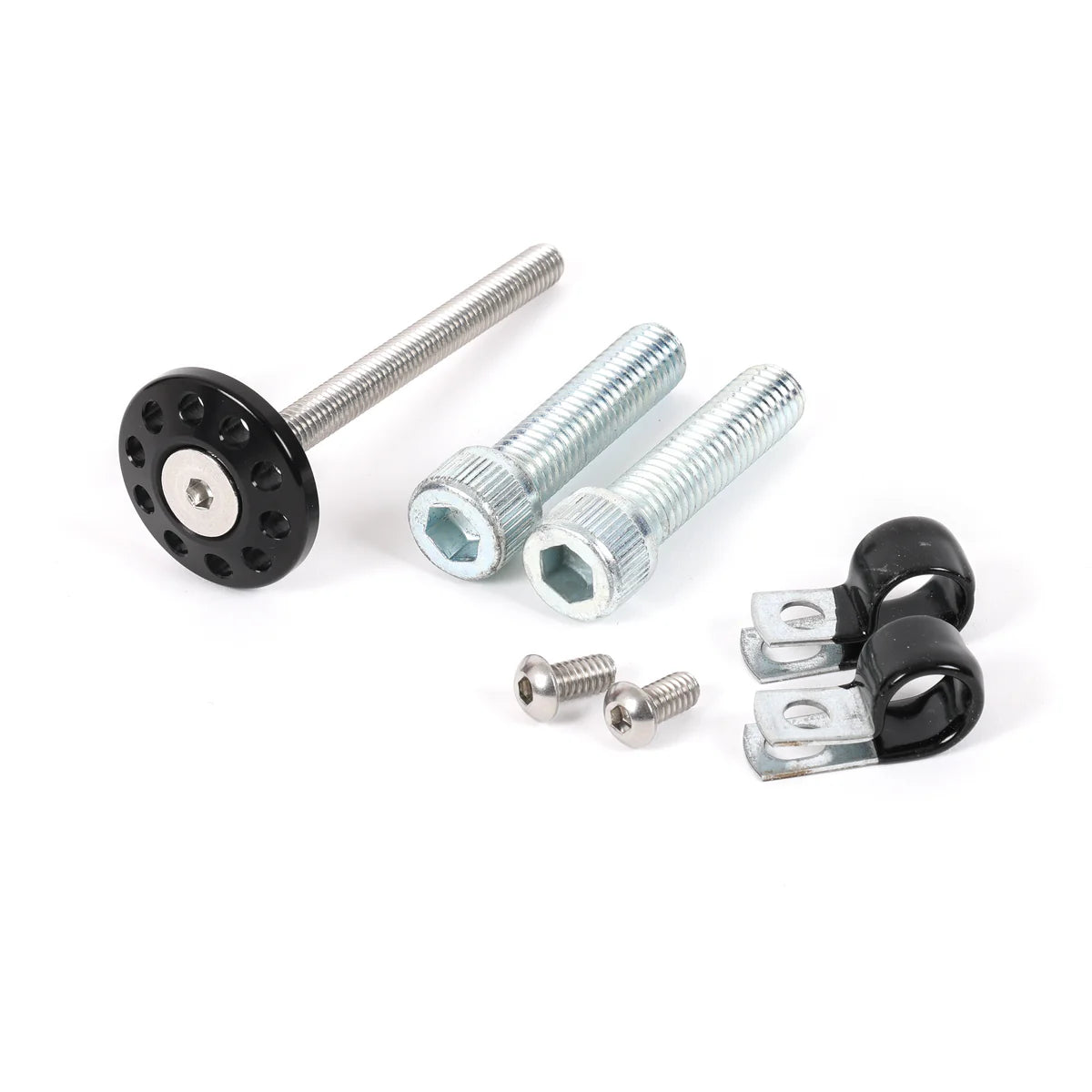

Hardware included
CNC-machined billet aluminum stem washer included
Precision CNC-machined from 6061-T6 billet aluminum
Made in the USA
Notes
Steering stem is not included. The factory stem must be reused and pressed out/in during installation.
Models equipped with an OEM Low Rider S fairing require the FXLRS Fairing Mount Bracket (TSC-2918-1).
Low Rider ST models do not require the fairing bracket.
